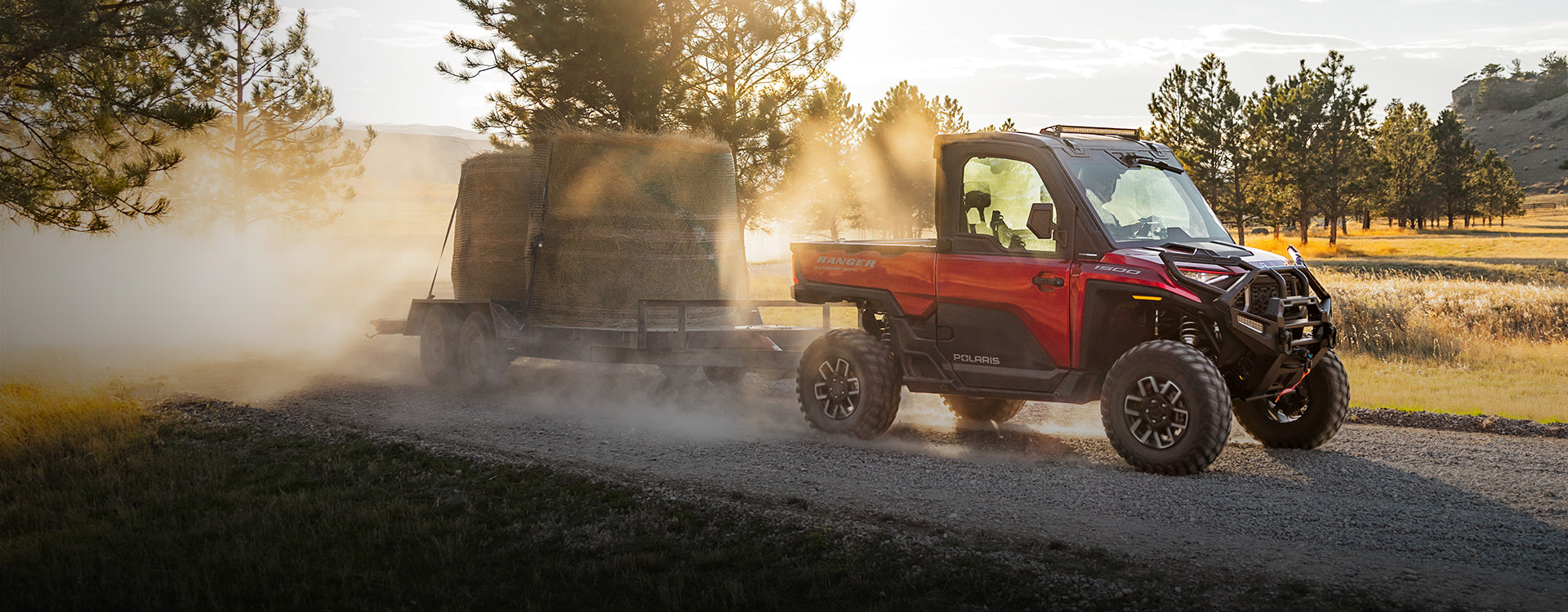

2024 RANGER XD 1500 NORTHSTAR EDITION ULTIMATE
2024 RANGER XD 1500 NORTHSTAR EDITION ULTIMATE for Sale at TeamMoto Polaris Springwood in Slacks Creek, QLD | Specifications and Review Information
BORN TO WORK. BUILT STRONG.
Part of the new Extreme Duty class, the RANGER XD 1500 NorthStar Edition is the strongest, most capable, most comfortable RANGER.
NORTHSTAR ULTIMATE TRIM INCLUDES:
- 7" Infotainment Screen powered by RIDE COMMAND
- Heated Seats and JBL Trail Pro 2000 Audio
- Factory-Installed Heating & Air Conditioning (HVAC) System
- Enclosed Cab with Power Windows and Tip Out Winshield
- Electronic Cargo Box Lift and 12V Cargo Box Power Port

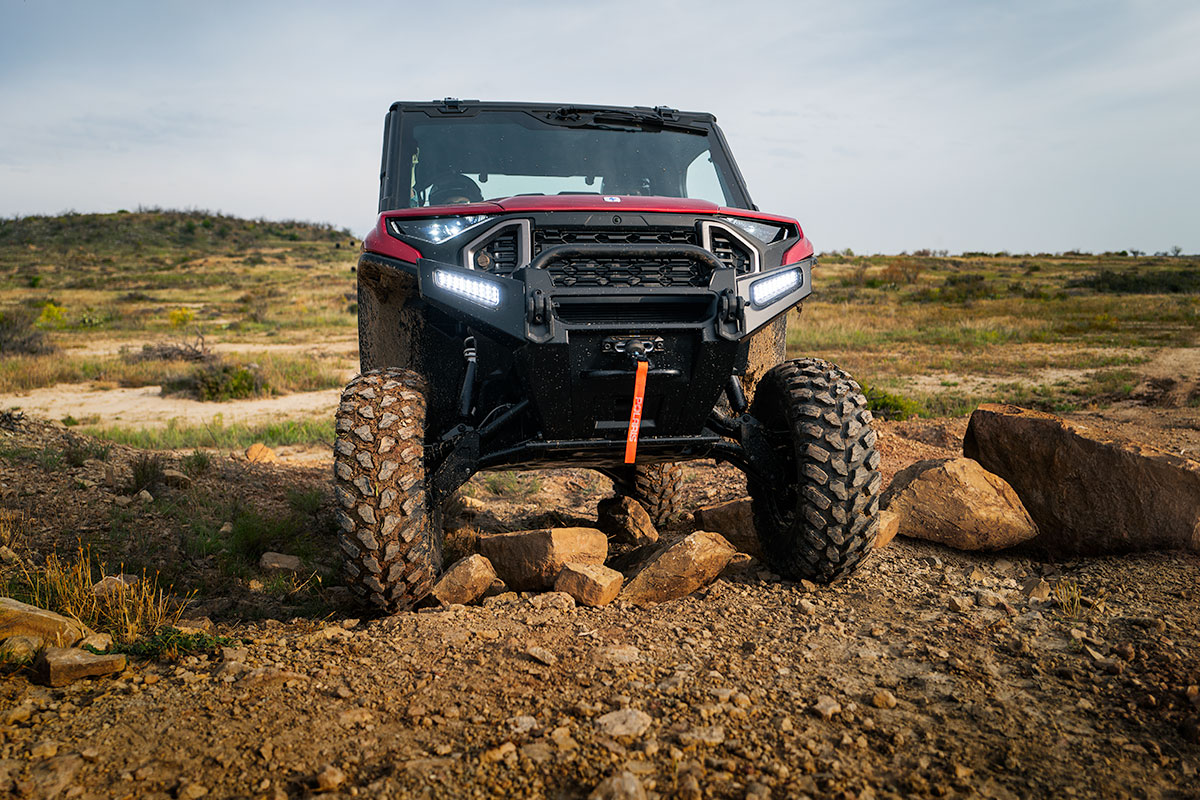

- Bumper D-Rings and TopBar, 2,948 KG Polaris HD Winch with Rapid Rope Recovery
- LED Cargo Box Light and Overhead Switch Panel
- 30" Kenda CrossTrail Tyres (8-Ply) & 15" Wheels.
XD 1500 NORTHSTAR STANDARD FEATURES:
- 110 HP ProStar 1500cc Engine & STEEDRIVE Transmission
- 1,588 kg Towing Capacity & 680 kg Dump Box Capacity
- Lock & Ride MAX Accessory Integration
UNPRECEDENTED CAPABILITY
The RANGER XD 1500 is engineered to tackle the toughest jobs with industry-leading capability.
Power Your Productivity
The RANGER XD 1500 is powered by a three-cylinder ProStar 1500cc engine, pumping out an industry-leading 110 horsepower and 142 Nm of torque for effortless hauling and towing and confidence in tough terrain.
Hard Work, Made Easy
Save time with fewer trips and heavier loads with the all-new cargo box. Featuring the industry’s only 680 kg. box capacity and a 50% larger box volume than full-size UTVs.
Tow Heavy Payloads

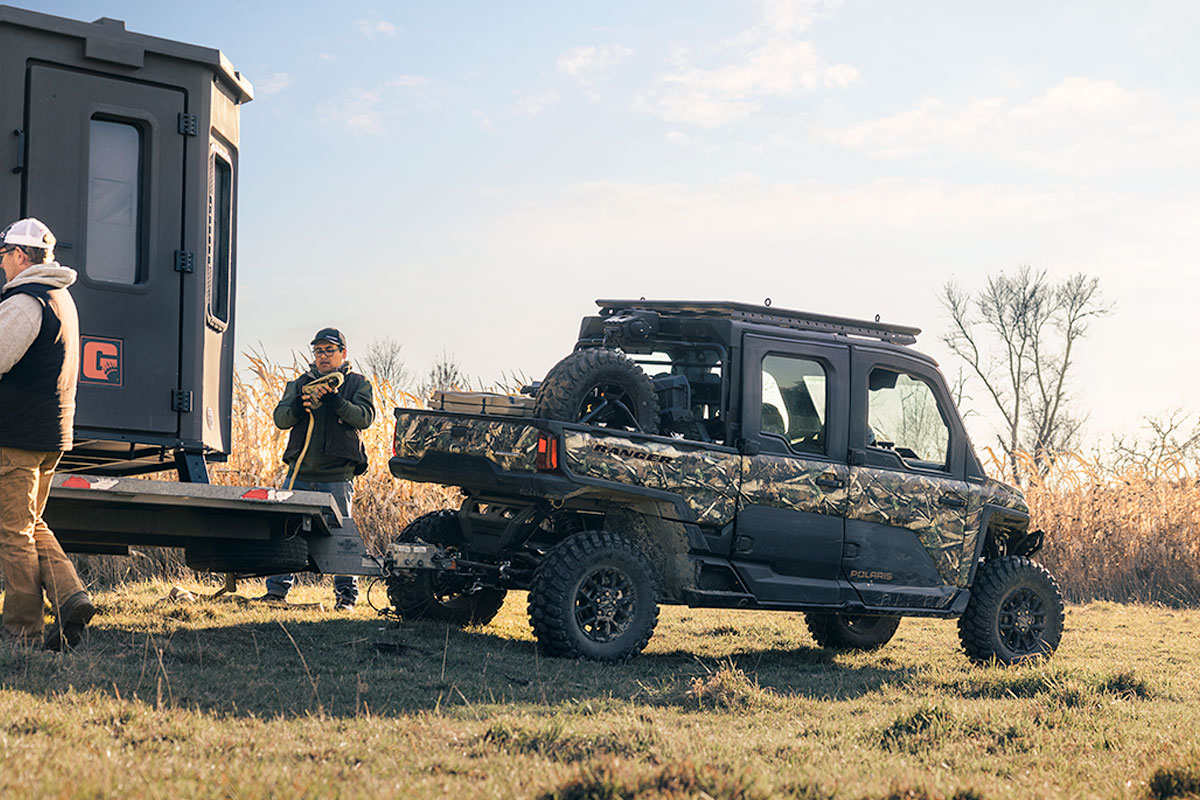

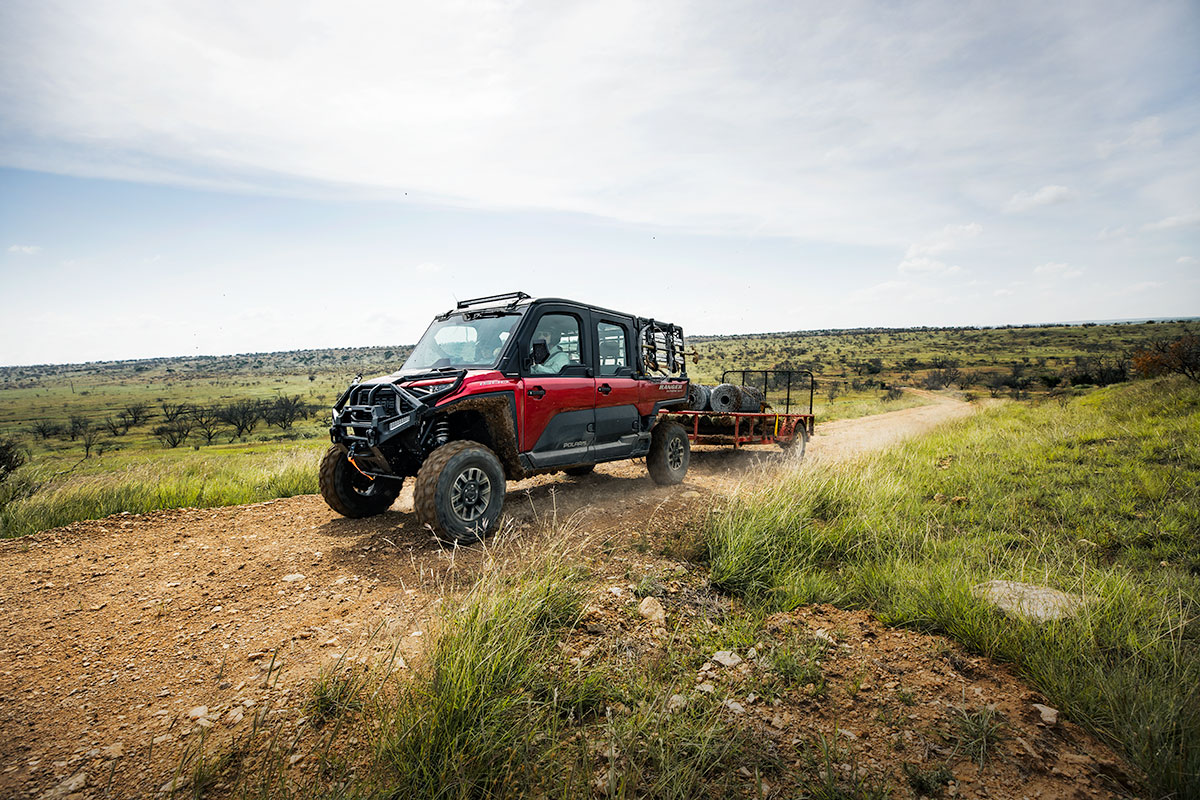

Maximise your productivity with enhanced capability. From round bales to horse trailers, XD 1500 is engineered to work with an astounding 1,588 kg. towing capacity.
Disclaimer: Warning - Models could be shown with optional extra accessories.
ENGINE & DRIVETRAIN
Motor | 4-Stroke DOHC Triple Cylinder |
Cylinders-Displacement (cc) | 1498cc |
Torque | 105 LB-FT |
Horsepower | 110 HP |
Fuel System/Battery | Electronic Fuel Injection |
Transmission/Final Drive | STEELDRIVE Automatic Transmission: D/R/P |
Drive System Type | On-Demand True AWD/2WD/Turf/Ultra Turf, Drive Modes: Comfort, Standard, Sport, Tow/Haul, Equipped with creep in drive and reverse to help with low speed drivability for smoother power delivery |
Engine Braking System | Drive Mode Specific Engine Braking System. Hill Assist enables the vehicle to hold its position, allowing easier maneuvering and improved control when stopping and starting on hills. |
Cooling | Liquid |
Suspension / Brakes / Wheels
Front Suspension | Dual A-Arm 30.5 cm Travel |
TURNING RADIUS | 4.6 m |
Rear Suspension | Dual Arched A-Arm IRS 30.5 cm Travel |
Front / Rear Brakes | Foot activated and power assisted, 4 wheel hydraulic disc with dual-bore front and rear calipers |
Parking Brake | Park In-Transmission |
Front Tyres | 30 x 10-15; KENDA® CROSS TRAIL |
Rear Tyres | 30 x 11-15; KENDA® CROSS TRAIL |
Wheels | 15" Aluminum |
DIMENSIONS
Bed Box Dimensions (L x W x H) | 110.2 x 142.2 x 34 cm Equipped with Power Box Lift |
Box Capacity | 680 kg |
Fuel Capacity | 51.5 L |
Ground Clearance | 38 cm |
Overall Vehicle Size (L x W x H) | 348 x 163 x 198 cm |
Payload capacity | 773 kg |
Person capacity | 3 |
Wheelbase | 241.3 cm |
Estimated Dry Weight | 1,270 kg |
Features
Cargo System | Lock & Ride Max |
Electric Power Steering | High Output EPS |
Hitch Towing Rating | 1588 kg |
Hitch/Type | Standard/5 CM Receiver |
Instrumentation | Driver Forward Information Center w/ 4 in Color Display + Analog Speedometer & Tachometers: User Selectable Blue/Red Backlighting & Brightness,Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Oil Pressure, Transmission Indicator, EPS Indicator, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, Speed Limiting |
Lighting | LED Headlights w/ LED Accent, LED Taillights, Lighting Modes: Low, High, Accent, Blackout. Blackout mode switches off the headlights and dims interior lighting. |
OtherStandardFeatures | Premium Contoured Seats with Additional Bolstering and Center Armrests. Premium Steering Wheel and Interior Accents. Polaris Pulse Electrical System (6 position), 140 Amp Charging System, Roof with Liner, Front Bumper, DC Outlet, USB Charge Port, Trickle Charger, 12V Located in the Cargo Box with In-Dash On/Off Switch, NFC Front Badge |
Water Fording Height | Equal to the Floorboards |
Variants | Off-road |
