RANGER SP 530
GET MORE DONE. HAVE MORE FUN.
RANGER SP 530
Built for power and value as an optimal entry-level midsize side-by-side, to work and play harder with 32 HP, 680.4kg towing capacity and 25.4cm clearance.
- 32HP ProStar Polaris Engine
- 680.3 kg Towing Capacity
- 28cm Ground Clearance
- 22.8cm Front / 25.4cm Rear Suspension Travel
- 25" 489 Tyres
- New Mud Guards
DESIGNED TO WORK HARD AND FUN TO DRIVE.
The RANGER SP 530 is the optimal 2-person utility side-by-side entry platform. When there’s work to be done, it makes hauling and towing fast and easy thanks to class-leading capability. This workhorse is equipped with features you need to get the job done, and maximum comfort you desire for successful days on the trails or around your property.
RANGER SP 530 FEATURES
GREAT FOR WORK

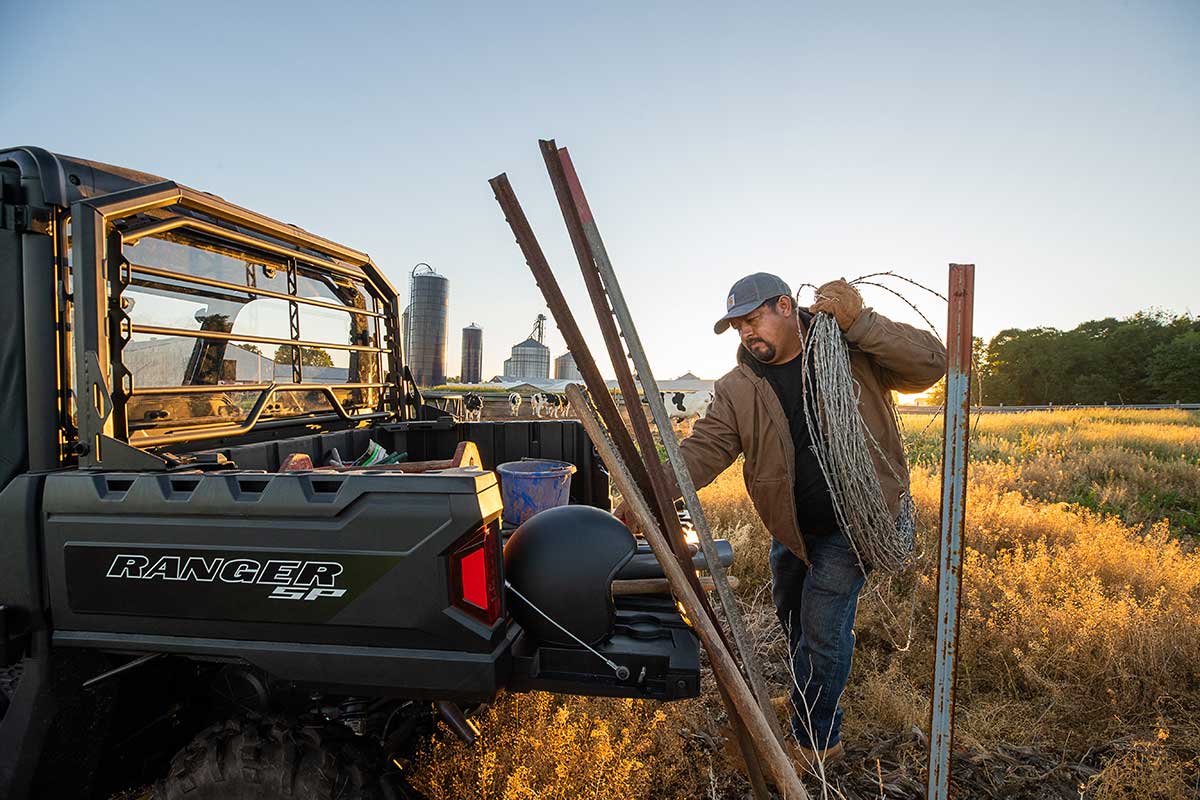

The RANGER SP 530 has the hauling power you need for jobs big and small. The standard 50mm hitch receiver can tow up to 680.4kg with a 226.8kg dump box, so you can efficiently transport more tools or supplies. A new single-handle tailgate allows for quick and easy access to dump mulch, logs and other cargo from the box.
PERFECT ON ANY TERRAIN

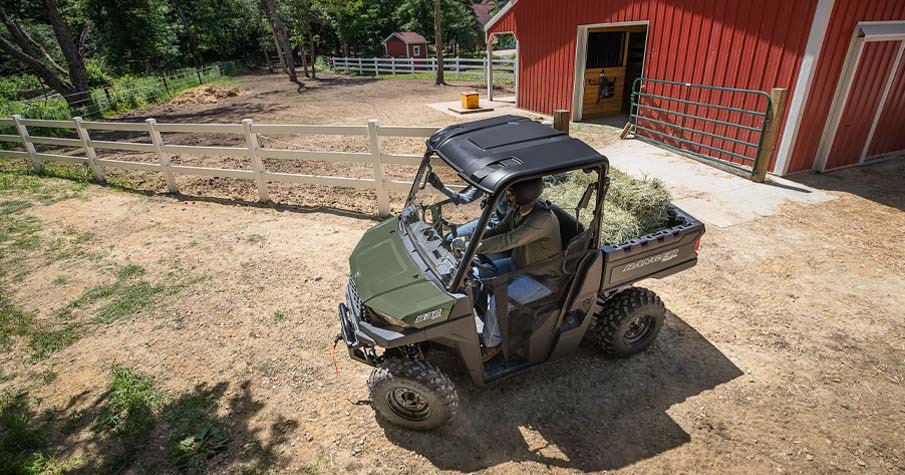

Get instant traction thanks to the True On-Demand All-Wheel Drive, which provides power to all four wheels when traction loss is detected, for safe maneuvering over rocky, wet and muddy terrain. The Ranger SP 530 is also easy on the lawn due to the specialized Turf Mode, which unlocks the rear differential for easier and tighter turns that keep your lawn in top condition.
ALL-DAY COMFORT
Confidently soak up rough terrain with 25.4cm of independent rear suspension travel and rise over obstacles with 28cm of ground clearance, delivering the smoothest ride in mid-size utility. Enjoy the added convenience and comfort with an adjustable tilt steering wheel.
Disclaimer: Warning - Models could be shown with optional extra accessories.
ENGINE & DRIVETRAIN
Cooling
| Motor | 4-Stroke Single Cylinder |
| Cylinders-Displacement (cc) | 530 CC / 32 HP |
| Fuel System | Electronic Fuel Injected |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; SHAFT |
| Drive System Type | On-Demand True AWD/2WD/VERSATRAC TURF MODE |
|
Cooling |
Liquid |
Suspension / Brakes / Wheels
| Front Suspension | Macpherson Strut 22.9 CM Travel |
| Rear Suspension | Dual A-ARM, IRS 25.4 CM Travel |
| Front / Rear Brakes | 4-Wheel Hydraulic Disc |
| Parking Brake | Park in-transmission |
| Front Tyres | 25 x 8-12; Carlisle 489 |
| Rear Tyres | 25 x 10-12; Carlisle 489 |
| Wheels | Stamped Steel |
DIMENSIONS
| Bed Box Dimensions (L x W x H) | 84.6 x 123.7 x 31.2 CM |
| Box Capacity | 227 kg |
| Fuel Capacity | 35.9 L |
| Ground Clearance | 27.9 cm |
| Overall Vehicle Size (L x W x H) | 279 x 147 x 185 cm |
| Payload capacity | 453.6 kg |
| Person Capacity | 2 |
| Wheelbase | 185.4 cm |
| Estimated Dry Weight | 525 kg |
Features
| Cargo System | Lock & Ride® |
| Hitch Towing Rating | 680 kg |
| Hitch/Type | Standard 5cm receiver |
| Hitch Towing Rating | N/A |

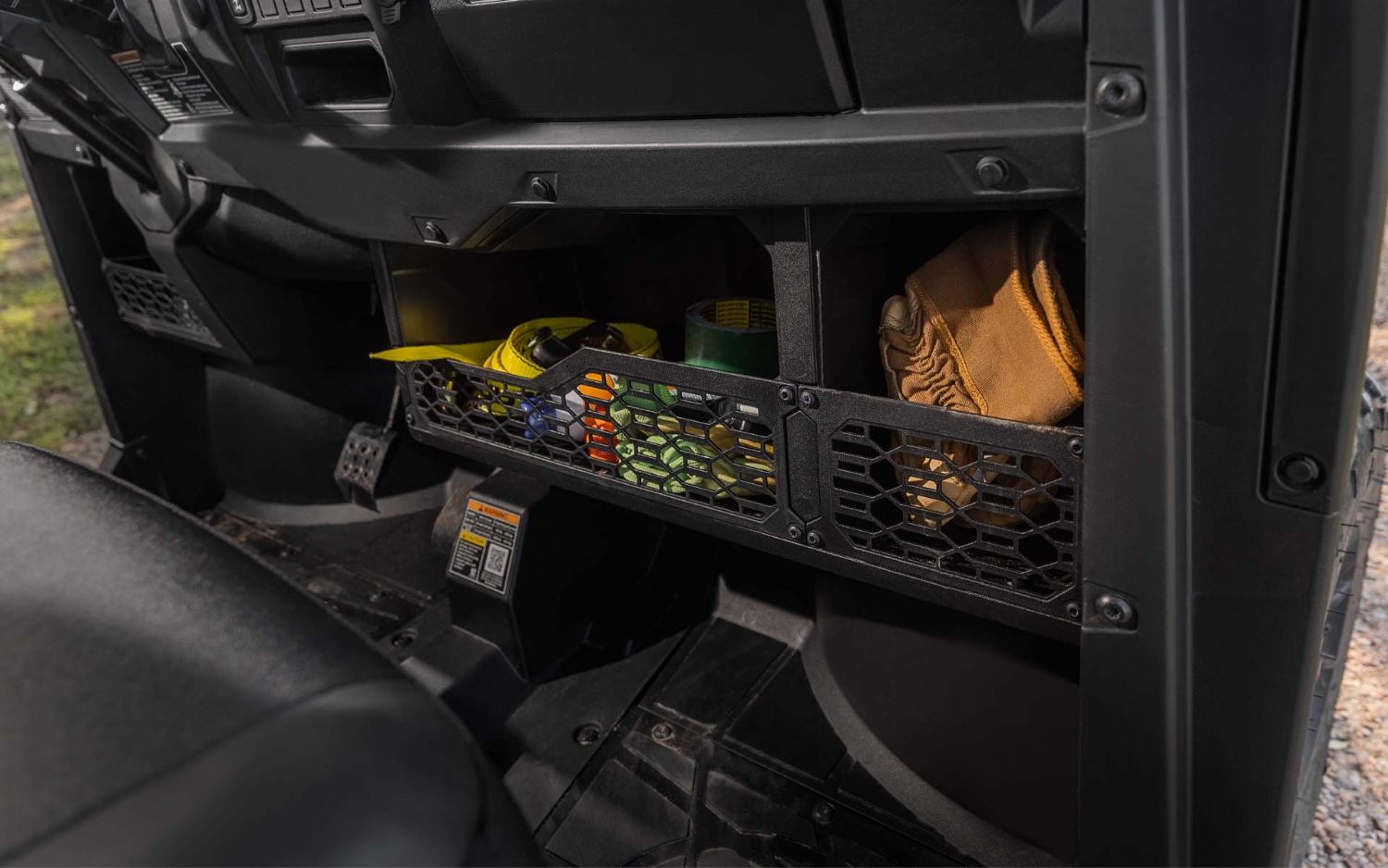

| Instrumentation | 4” LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet, Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 340 CCA Battery, 660W Charging System (Stator), 20.25 Gal. Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Steel Front Bumper With Winch Mount and Bull Bar, Rear Wheel Liners |

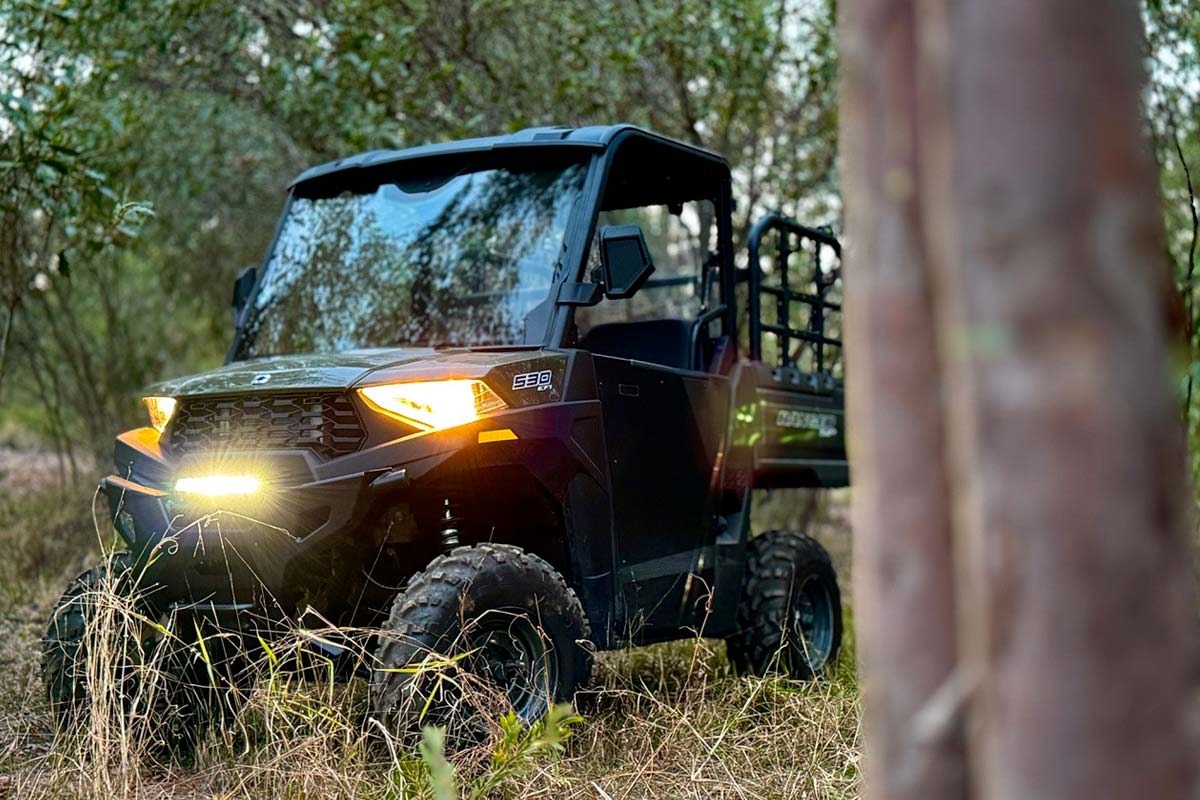

| Lighting | 55w headlight |
| Variants | Off-road |
